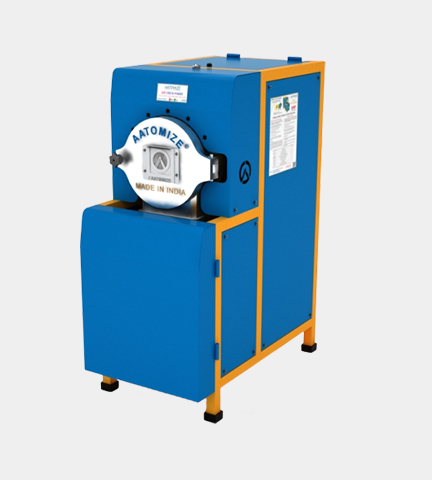

1HP,2HP,3HP Micro Grinding micro grinding pulverizer

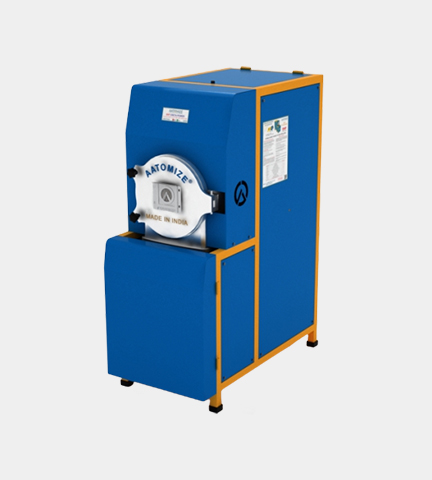

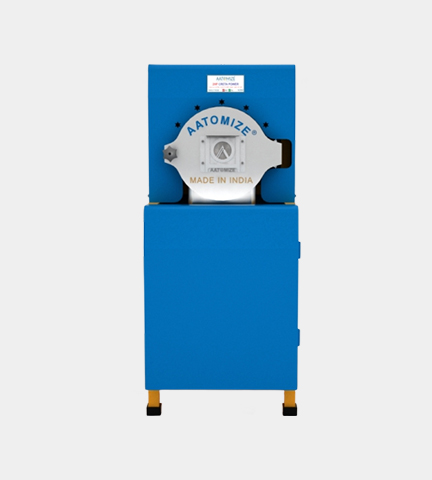

1HP,2HP,3HP Creta Power Creta Power pulverizer

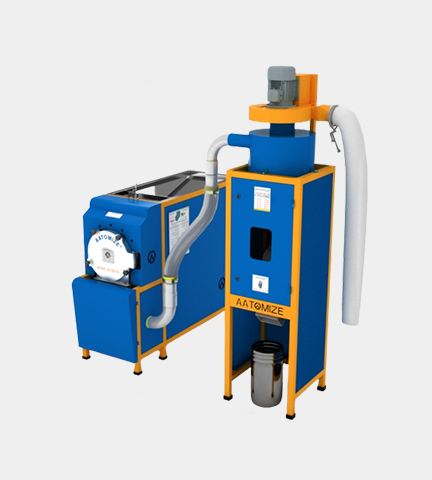

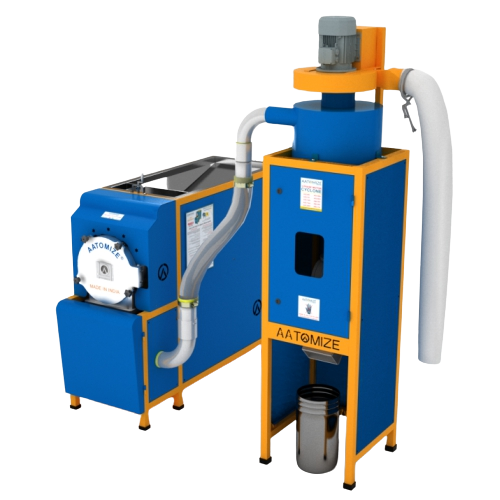

5hp pulverizer machine with cyclone 5hp-pulverizer-machine-with-cyclone

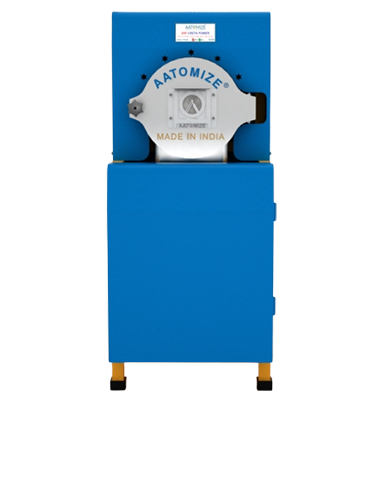

3HP,5HP Creta Power 3HP,5HP Creta Power pulverizer

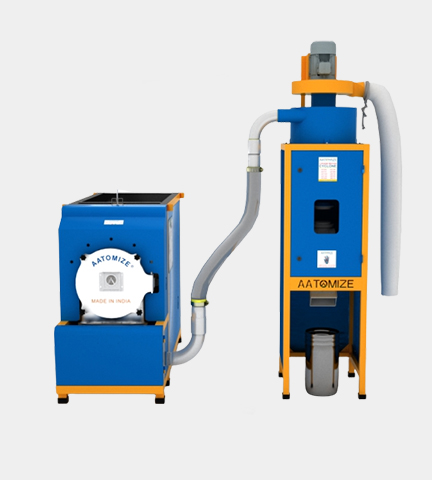

7.5HP,10HP,15HP Heavy Duty 7.5HP,10HP,15HP Heavy Duty pulverizer

Contact Me

Address Survey No. 1/2, Plot No. 6/7,
Captain Tractor Street,
Padvala Road, Shapar, Veraval
Rajkot - 360024,Gujarat, India
Phone +91 87390 87390

Buy Now

CRETA POWER	1 HP	2 HP	3 HP
MODEL NO.	AZ102	AZ202	AZ302
GRINDING CAPACITY PER HRS	12 TO 15 KG	15 TO 25 KG	25 TO 40 KG
AUTOMATION GRADE	SEMI AUTOMATIC	SEMI AUTOMATIC	SEMI AUTOMATIC
MATERIAL	MS BODY	MS BODY	MS BODY
POWER SOURCE	ELECTRIC	ELECTRIC	ELECTRIC
VOLTAGE (V)	220	220	220
CURRENT (A)	6	10	15
CORROSION RESISTANCE	YES	YES	YES
POWER CONSUMPTION	0.746KWH	1.50KWH	2.30KWH
MOTOR SPEED	2880	2880	2880
FREQUENCY (HZ)	50	50	50
MOTOR TYPE	SINGLE PHASE	SINGLE PHASE	SINGLE PHASE
COATING	POWDER COATING	POWDER COATING	POWDER COATING
CHAMBER	DOUBLE CHAMBER	DOUBLE CHAMBER	DOUBLE CHAMBER
MACHINE DIMENSION INCH	L-27", W-13", H-34"	L-31", W-17", H-38"	L-33", W-17", H-43"
FRONT CHAMBER DIMENSION INCH	8" Dia x 4" Depth	10" Dia x 5" Depth	10" Dia x 6.5" Depth
BACK CHAMBER DIMENSION INCH	5" Dia x 2" Depth	6" Dia x 4" Depth	6" Dia x 4" Depth

CRETA POWER	3 HP	5 HP
MODEL NO.	AZ303	AZ502
GRINDING CAPACITY PER HRS	25 TO 40 KG	40 TO 60 KG
AUTOMATION GRADE	SEMI AUTOMATIC	SEMI AUTOMATIC
MATERIAL	MS BODY	MS BODY
POWER SOURCE	ELECTRIC	ELECTRIC
VOLTAGE (V)	415	415
CURRENT (A)	4.5	7.5
CORROSION RESISTANCE	YES	YES
POWER CONSUMPTION	2.30KWH	3.75KWH
MOTOR SPEED	2880	2880
FREQUENCY (HZ)	50	50
MOTOR TYPE	THREE PHASE	THREE PHASE
COATING	POWDER COATING	POWDER COATING
CHAMBER	DOUBLE CHAMBER	DOUBLE CHAMBER
MACHINE DIMENSION INCH	L-33", W-17", H-43"	L-37", W-17", H-43"
FRONT CHAMBER DIMENSION INCH	10" Dia x 6.5" Depth	12" Dia x 6.5" Depth
BACK CHAMBER DIMENSION INCH	6" Dia x 4" Depth	6.5" Dia x 4" Depth

CRETA POWER	5 HP
MODEL NO.	AZC502
GRINDING CAPACITY PER HRS	40 TO 60 KG
AUTOMATION GRADE	SEMI AUTOMATIC
MATERIAL	MS BODY
POWER SOURCE	ELECTRIC
VOLTAGE (V)	415
CURRENT (A)	7.5
CORROSION RESISTANCE	YES
POWER CONSUMPTION	5.00KWH
MOTOR SPEED	2880
FREQUENCY (HZ)	50
MOTOR TYPE	THREE PHASE
COATING	POWDER COATING
CHAMBER	DOUBLE CHAMBER
MACHINE DIMENSION INCH	L-37", W-17", H-43"
FRONT CHAMBER DIMENSION INCH	12" Dia x 6.5" Depth
BACK CHAMBER DIMENSION INCH	6.5" Dia x 4" Depth
CYCLONE MOTOR	0.5 hp & 0.5 hp
CYCLONE DIMENSION INCH	L-22", W-22", H-78"

HEAVY DUTY	7.5 HP	10 HP	15 HP
MODEL NO.	AZC751	AZC1001	AZC1501
GRINDING CAPACITY PER HRS	60 TO 100 KG	70 TO 120 KG	120 TO 160 KG
AUTOMATION GRADE	SEMI AUTOMATIC	SEMI AUTOMATIC	SEMI AUTOMATIC
MATERIAL	MS BODY	MS BODY	MS BODY
POWER SOURCE	ELECTRIC	ELECTRIC	ELECTRIC
VOLTAGE (V)	415	415	415
CURRENT (A)	10.5	16.5	22
CORROSION RESISTANCE	YES	YES	YES
POWER CONSUMPTION	6.80KWH	9.00KWH	14.00KWH
MOTOR SPEED	2880	2880	2880
FREQUENCY (HZ)	50	50	50
MOTOR TYPE	THREE PHASE	THREE PHASE	THREE PHASE
COATING	POWDER COATING	POWDER COATING	POWDER COATING
CHAMBER	DOUBLE CHAMBER WITH PEDITION	DOUBLE CHAMBER WITH PEDITION	DOUBLE CHAMBER WITH PEDITION
MACHINE DIMENSION INCH	L-49", W-22", H-60"	L-64", W-23", H-51"	L-65", W-25", H-53"
FRONT CHAMBER DIMENSION INCH	14" Dia x 8.5" Dep.	14" Dia x 8.5" Dep.	16" Dia x 10.5" Dep.
BACK CHAMBER DIMENSION INCH	10" Dia x 4" Dep.	10" Dia x 4" Dep.	10" Dia x 4" Dep.
CYCLONE MOTOR	0.5 hp & 1 hp	0.5 hp & 1 hp	0.5 hp & 2 hp
CYCLONE DIMENSION INCH	L-22", W-22", H-83"	L-22", W-22", H-83"	L-22", W-22", H-83"
